Implementations of functions that communicate directly with the SIM808 module and control it. More...

#include <string.h>
#include <stdio.h>
#include "sim808.h"

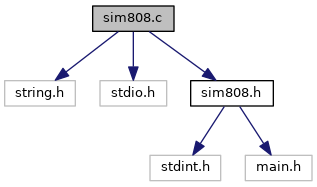

Include dependency graph for sim808.c:

Functions
void	send_debug (const char *debug_msg)
	sends a debug message through the debug UART More...

void	send_raw_debug (uint8_t *debug_dump, uint8_t length)

void	HAL_UART_RxCpltCallback (UART_HandleTypeDef *huart)
	is called when the receive buffer of any UART has received 1 byte. it copies the received byte into the receive buffer which is a global variable: sim_rx_buffer. it also increases by one the counter of received bytes: rx_index. Which points to the next free index in the receive buffer. usart1 is always used to communicate with SIM module therefore AT_uart is defined as usart1. More...

uint8_t	sim_init (SIM808_typedef *sim)
	it initialises the SIM808_typedef struct members and powers on the module. initializes the UARTs and the GPIOs used to power on, reset and check the status of the module. Which UART peripheral is used for what is specified in the parameter SIM808_typedef members: AT_uart and debug_uart. More...

uint8_t	sim_power_off (SIM808_typedef *sim)
	power_off the module. More...

void	system_reset (SIM808_typedef *sim)
	power_off the module and reset the MCU More...

uint8_t	send_AT_cmd (const char cmd, const char expected_reply, uint8_t save_reply, char *cmd_reply, uint32_t rx_timeout)
	sends a cmd to the module, if the parameter save_reply == 1 then it copies the reply into the parameter cmd_reply. More...

uint8_t	is_subarray_present (const uint8_t array, size_t array_len, const uint8_t subarray, size_t subarray_len)

uint8_t	send_serial_data (uint8_t data, uint8_t length, char cmd_reply, uint32_t rx_timeout)
	sends raw serial data to the SIM808 module through the AT_uart peripheral. Then it deletes the receive buffer. More...

Variables
UART_HandleTypeDef	huart1

UART_HandleTypeDef	huart2

Detailed Description

Implementations of functions that communicate directly with the SIM808 module and control it.

Author: Mohamed Boubaker

Bug:: issue #9

Function Documentation

void HAL_UART_RxCpltCallback ( UART_HandleTypeDef * huart )

is called when the receive buffer of any UART has received 1 byte. it copies the received byte into the receive buffer which is a global variable: sim_rx_buffer. it also increases by one the counter of received bytes: rx_index. Which points to the next free index in the receive buffer. usart1 is always used to communicate with SIM module therefore AT_uart is defined as usart1.

uint8_t is_subarray_present	(	const uint8_t *	array,
		size_t	array_len,
		const uint8_t *	subarray,
		size_t	subarray_len
	)

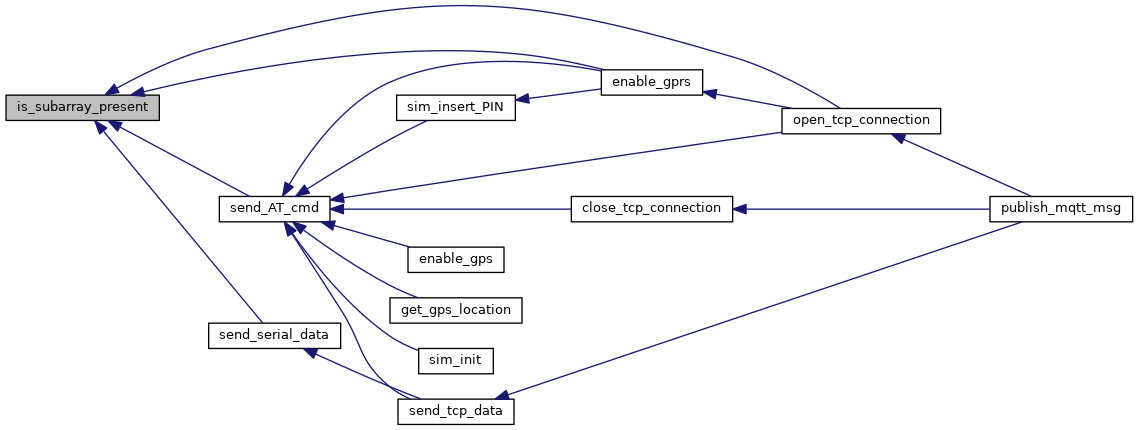

Here is the caller graph for this function:

uint8_t send_AT_cmd	(	const char *	cmd,
		const char *	expected_reply,
		uint8_t	save_reply,
		char *	cmd_reply,
		uint32_t	rx_timeout
	)

sends a cmd to the module, if the parameter save_reply == 1 then it copies the reply into the parameter cmd_reply.

Parameters

cmd	is the AT command to be sent
expected_reply	is used to determine if the outcome of the function is SUCCESS or FAIL.
save_reply	if set to 1, then the reply from the module gets copied into cmd_reply.
cmd_reply	is an array where to modules reply is copied.
rx_timeout	the maximum amount of time the function will wait for the module to receive a reply.

Returns: SUCCESS if the module replies withing timeout and the reply includes the expected_reply, FAIL otherwise.

Here is the call graph for this function:

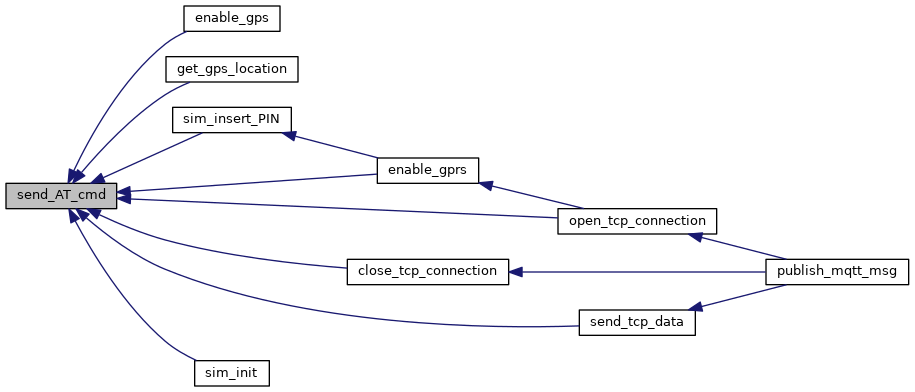

Here is the caller graph for this function:

void send_debug ( const char * debug_msg )

sends a debug message through the debug UART

Parameters

debug_message is the debug message.

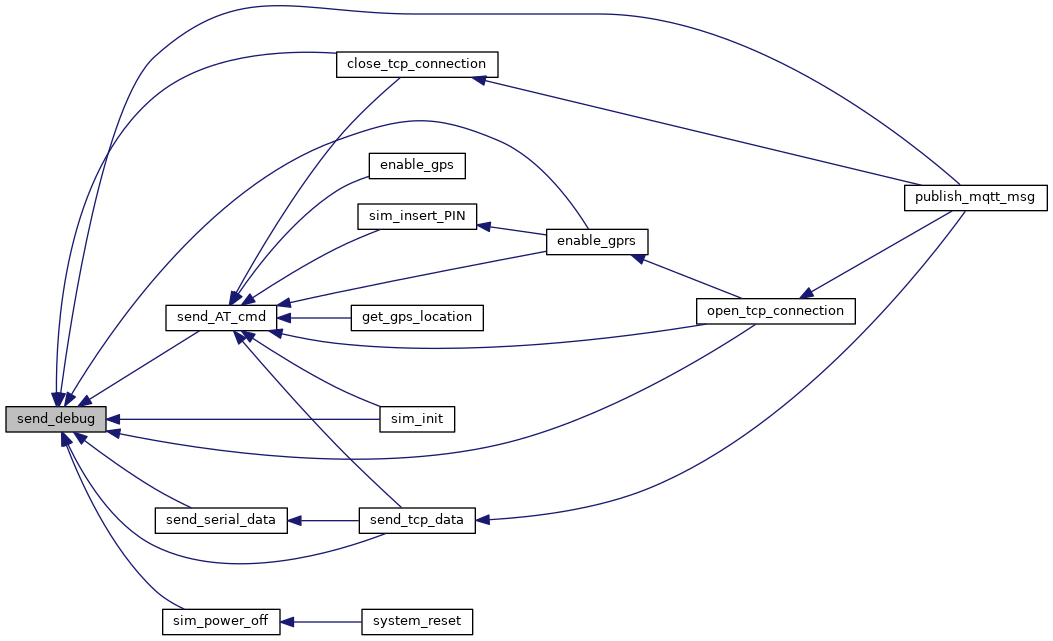

Here is the caller graph for this function:

void send_raw_debug	(	uint8_t *	debug_dump,
		uint8_t	length
	)

Here is the caller graph for this function:

uint8_t send_serial_data	(	uint8_t *	data,
		uint8_t	length,
		char *	cmd_reply,
		uint32_t	rx_wait
	)

sends raw serial data to the SIM808 module through the AT_uart peripheral. Then it deletes the receive buffer.

Parameters

cmd	contains the command
rx_wait	waiting time before exit. To make sure the reply is received.

Here is the call graph for this function:

Here is the caller graph for this function:

uint8_t sim_init ( SIM808_typedef * sim )

it initialises the SIM808_typedef struct members and powers on the module. initializes the UARTs and the GPIOs used to power on, reset and check the status of the module. Which UART peripheral is used for what is specified in the parameter SIM808_typedef members: AT_uart and debug_uart.

Parameters
