Prototypes of functions that communicate with the SIM808 module and control it and definition of related parameters. More...

#include <stdint.h>
#include "main.h"

Include dependency graph for sim808.h:

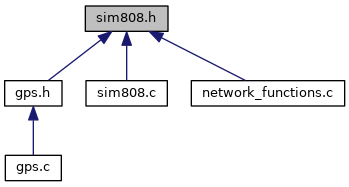

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	SIM808_typedef
	is used to abstract the SIM808 hardware interface. It will decouple the functions from the hardware (uart+pins) used to interface with the module. The UART peripheral used to send AT commands to the module and the UART used to send Debug messages and the pins used to power on, reset and check status of the module are combined together in this struct. This struct will be passed to all the functions that perform actions on the module. More...

Macros
#define	AT_uart huart1

#define	debug_uart huart2

#define	DEBUG_MODE 1

#define	FAIL 0

#define	SUCCESS 1

#define	TRUE 1

#define	FALSE 0

#define	GREEN_LED GPIO_PIN_13

#define	RX_WAIT 200 /* After sending AT command, wait RX_WAIT ms to ensure that the reply is receeived in the buffer */

#define	RX_TIMEOUT 1000

#define	TX_TIMEOUT 100

#define	BAUD_RATE 38400 /* BAUD_RATE=38400 => it take 26 ms to send 100 bytes */

#define	RX_BUFFER_LENGTH 256

#define	SIM_UART huart2

#define	DEBUG_UART huart1

#define	TCP_CONNECT_TIMEOUT 5 /* value in second */

#define	GPS_COORDINATES_LENGTH 23

Functions
uint8_t	sim_init (SIM808_typedef *sim)
	it initialises the SIM808_typedef struct members and powers on the module. initializes the UARTs and the GPIOs used to power on, reset and check the status of the module. Which UART peripheral is used for what is specified in the parameter SIM808_typedef members: AT_uart and debug_uart. More...

uint8_t	sim_power_off (SIM808_typedef *sim)
	power_off the module. More...

void	system_reset (SIM808_typedef *sim)
	power_off the module and reset the MCU More...

uint8_t	send_AT_cmd (const char cmd, const char expected_reply, uint8_t save_reply, char *cmd_reply, uint32_t rx_timeout)
	sends a cmd to the module, if the parameter save_reply == 1 then it copies the reply into the parameter cmd_reply. More...

uint8_t	send_serial_data (uint8_t data, uint8_t length, char cmd_reply, uint32_t rx_wait)
	sends raw serial data to the SIM808 module through the AT_uart peripheral. Then it deletes the receive buffer. More...

void	send_debug (const char *debug_msg)
	sends a debug message through the debug UART More...

void	send_raw_debug (uint8_t *debug_dump, uint8_t length)

uint8_t	is_subarray_present (const uint8_t array, size_t array_len, const uint8_t subarray, size_t subarray_len)

Detailed Description

Prototypes of functions that communicate with the SIM808 module and control it and definition of related parameters.

Author: Mohamed Boubaker

Bug:: issue #9

Macro Definition Documentation

#define AT_uart huart1

#define BAUD_RATE 38400 /* BAUD_RATE=38400 => it take 26 ms to send 100 bytes */

#define DEBUG_MODE 1

#define debug_uart huart2

#define DEBUG_UART huart1

#define FAIL 0

#define FALSE 0

#define GPS_COORDINATES_LENGTH 23

#define GREEN_LED GPIO_PIN_13

#define RX_BUFFER_LENGTH 256

#define RX_TIMEOUT 1000

#define RX_WAIT 200 /* After sending AT command, wait RX_WAIT ms to ensure that the reply is receeived in the buffer */

#define SIM_UART huart2

#define SUCCESS 1

#define TCP_CONNECT_TIMEOUT 5 /* value in second */

#define TRUE 1

#define TX_TIMEOUT 100

Function Documentation

uint8_t is_subarray_present	(	const uint8_t *	array,
		size_t	array_len,
		const uint8_t *	subarray,
		size_t	subarray_len
	)

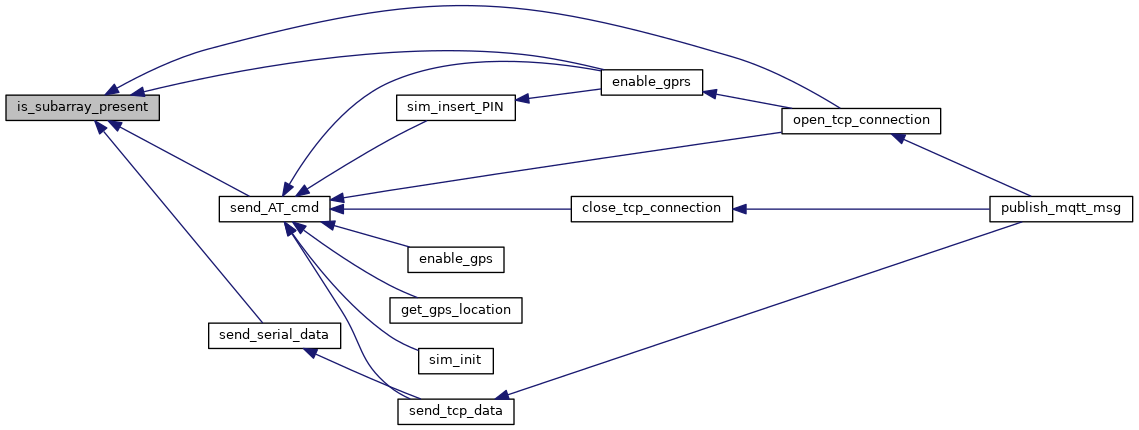

Here is the caller graph for this function:

uint8_t send_AT_cmd	(	const char *	cmd,
		const char *	expected_reply,
		uint8_t	save_reply,
		char *	cmd_reply,
		uint32_t	rx_timeout
	)

sends a cmd to the module, if the parameter save_reply == 1 then it copies the reply into the parameter cmd_reply.

Parameters

cmd	is the AT command to be sent
expected_reply	is used to determine if the outcome of the function is SUCCESS or FAIL.
save_reply	if set to 1, then the reply from the module gets copied into cmd_reply.
cmd_reply	is an array where to modules reply is copied.
rx_timeout	the maximum amount of time the function will wait for the module to receive a reply.

Returns: SUCCESS if the module replies withing timeout and the reply includes the expected_reply, FAIL otherwise.

Here is the call graph for this function:

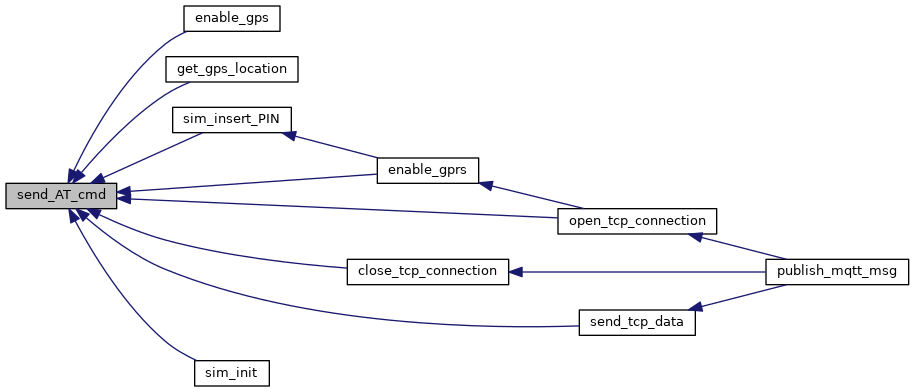

Here is the caller graph for this function:

void send_debug ( const char * debug_msg )

sends a debug message through the debug UART

Parameters

debug_message is the debug message.

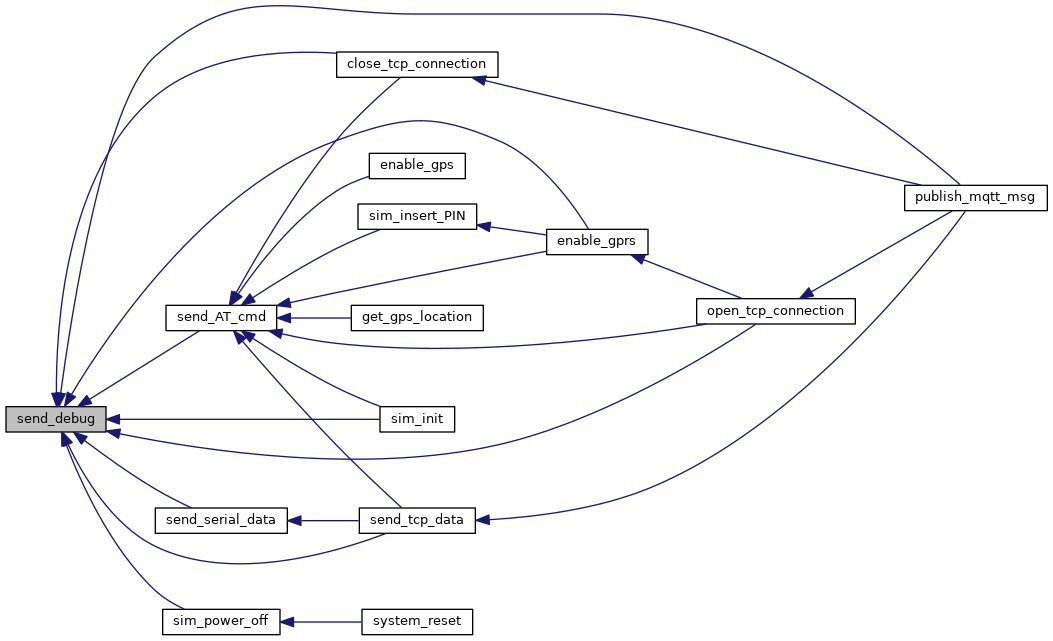

Here is the caller graph for this function:

void send_raw_debug	(	uint8_t *	debug_dump,
		uint8_t	length
	)

Here is the caller graph for this function:

uint8_t send_serial_data	(	uint8_t *	data,
		uint8_t	length,
		char *	cmd_reply,
		uint32_t	rx_wait
	)

sends raw serial data to the SIM808 module through the AT_uart peripheral. Then it deletes the receive buffer.

Parameters

cmd	contains the command
rx_wait	waiting time before exit. To make sure the reply is received.

Here is the call graph for this function:

Here is the caller graph for this function:

uint8_t sim_init ( SIM808_typedef * sim )

it initialises the SIM808_typedef struct members and powers on the module. initializes the UARTs and the GPIOs used to power on, reset and check the status of the module. Which UART peripheral is used for what is specified in the parameter SIM808_typedef members: AT_uart and debug_uart.
